Camera IP HD Speed Dome 2.0 Megapixel

HIKVISION
Chú ý: Thương hiệu HIKVISION hiện tại chúng tôi tạm ngừng kinh doanh. Kính mong Quý khách hàng thông cảm.
Sản phẩm đã hết hàng

HỖ TRỢ ĐẶT HÀNG/BÁO GIÁ Thứ 2 - Thứ 7 (7h30 - 17h)

THÔNG SỐ KỸ THUẬT

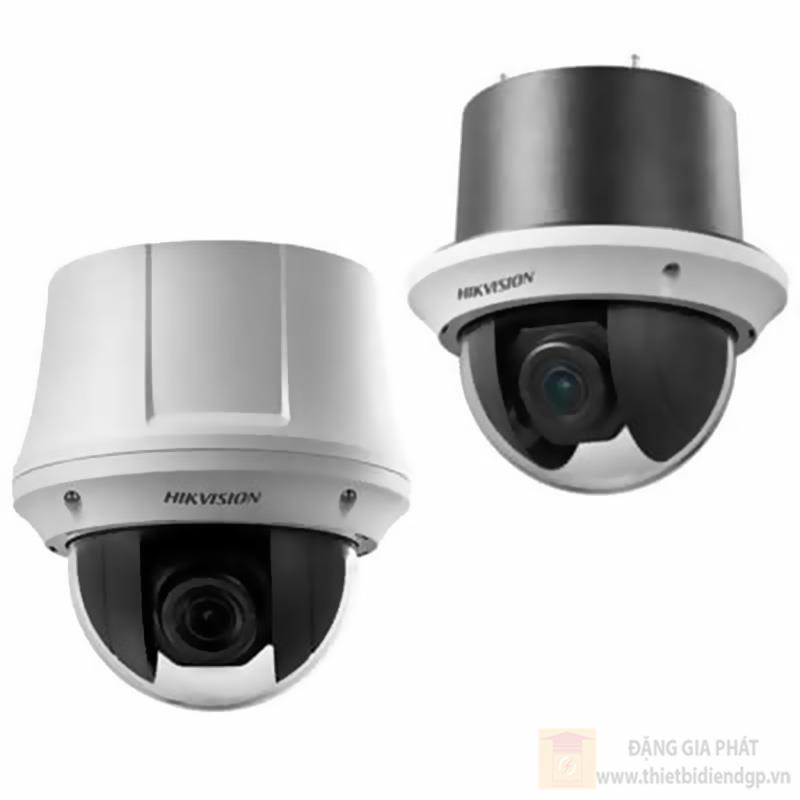

Camera IP HD Speed Dome 2.0 Megapixel HIKVISION DS-2DE4215W-DE3


-Cảm biến hình ảnh: 1/2.8 inch CMOS.
-Độ phân giải: 2.0 Megapixel.
-Chuẩn nén hình ảnh: H.265+/ H.265/ H.264+/ H.264.
-Hỗ trợ khe cắm thẻ nhớ microSD/SHDC/SDXC dung lượng lên đến 256GB.
-Ống kính: 5mm – 75mm.
-Zoom quang: 15x.
-Chức năng lọc nhiễu kỹ thuật số 3D DNR (Dynamic Noise Reduction).
-Chức năng chống ngược sáng Digital WDR (Wide Dynamic Range).
-Nguồn điện: 12VDC.
-Chức năng cấp nguồn qua mạng PoE+.
-Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…

Camera
Image Sensor:   1/2.8" HD progressive scan CMOS
Effective Pixels:   1920(H)x1080(V)
Signal System:   PAL/NTSC
Minimum Illumination:   Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON)
White Balance:   Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:   Auto/Manual
BLC:   ON/OFF
HLC:   Support
Smart defog:   Support
WDR:   120dB
Shutter Time:   1-1/10,000s
Day& Night:   ICR
Digital Zoom:   16X
Privacy Masking:   24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus:   Auto / Semi-automatic / Manual
Lens
Focal Length:   5 mm to 75 mm, 15× optical zoom
Zoom Speed:   Approx. 2.3 s (optical lens, wide-tele)
Angle of View:   Horizontal field of view: 53.8° to 4° (Wide-Tele) Vertical field of view: 31.9° to 2.3° (Wide-Tele) Diagonal field of view: 60.4° to 4.6° (Wide-Tele)
Minimum Working Distance:   10-1,500mm(Wide-Tele)
Aperture Range:   F1.6 to F2.8
Pan & Tilt
Pan Range:   360°endless
Pan Speed:   Configurable, from 0.1°/s to 160°/s,  Preset speed: 160°/s
Tilt Range:   0° to 90° (Auto-flip)
Tilt Speed:   Configurable, from 0.1°/s to 120°/s Preset Speed: 120°/s
Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:   300
Patrol:   8 patrols, up to 32 presets per patrol
Pattern:   4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:   Support
Park Action:   Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display:   ON/OFF
Network
Ethernet:   10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:   1920×1080
Main Stream:   50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream:   50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:   50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Video Compression:   Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
ROI encoding:   Support 4 areas with adjustable levels
Protocols:   IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:   Up to 20 users
Three-Stream:   Support
Mini SD Card:   Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host Level:   Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures:   User authentication (ID and PW), host authentication (MAC address)
Hik-Connect:   Support
Client GUI
Client:   iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser:   IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
General
Menu Language:   English
Power Supply:   12VDC, PoE+
Power Consumption:   Max.: 18 W
Working Temperature/Humidity:   -10°C to 50°C (-14°F to 122°F) 90% or less
Protection Level:   TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material:   ADC 12, PC, PC+10%GF
Dimensions:   Ceiling mounting model: Φ 165 mm × 179.5 mm (Φ 6.50" × 7.07") In-ceiling mounting model: Φ 165 mm × 168 mm (Φ 6.50" × 6.61")
Weight (approx.):   Approx. 2 kg (4.41 lb)
