| Model |

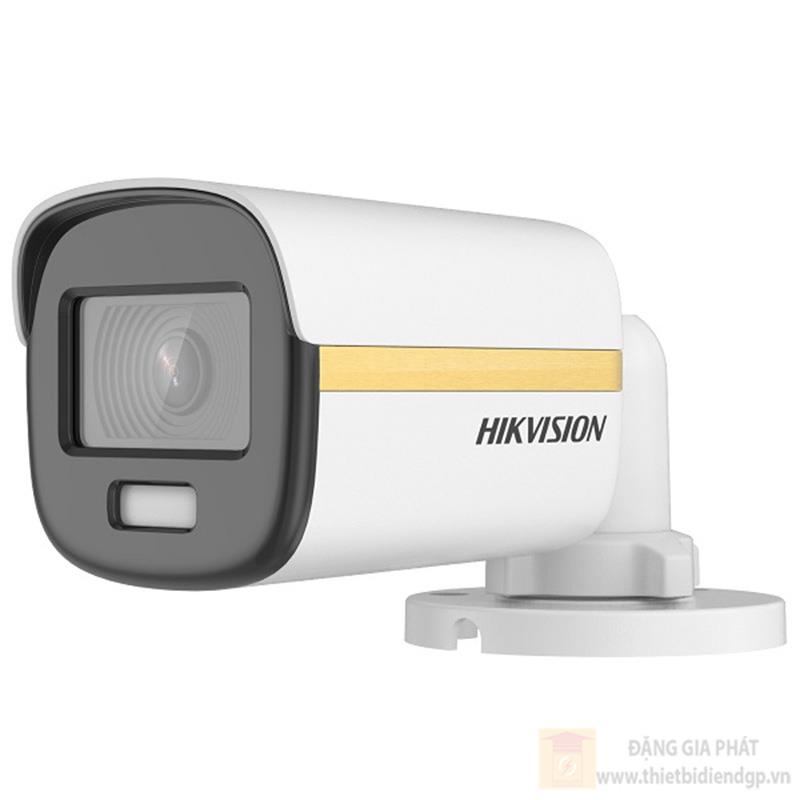

DS-2CE10DF3T-F |
| Camera |
| Image Sensor |
2MP CMOS |
| Signal System |
PAL/NTSC |
| Frame Rate |
1080p@25fps/30fps |
| Resolution |
1920 (H) × 1080 (V) |
| Min. Illumination |
0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light ON |
| Shutter Time |
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Lens |
2.8 mm, 3.6 mm, 6 mm Fixed Lens |
| Lens Mount |
M12 |
| Light Alarm |
Flashing Light Alarm (White Light), Solid Light Alarm (White Light) |
| Day& Night |
Color |
| WDR |
≥130 dB |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Menu |
| White Light |
Auto/Off |
| Image Mode |
STD/HIGH-SAT/HIGHLIGHT |
| Day/Night Mode |
Color |
| White Balance |
Auto/Manual |
| AGC |
Yes |
| AE (Auto Exposure) Mode |
WDR, BLC, HLC, Global, HLS |
| Privacy Mask |
4 programmable privacy masks |
| Motion Detection |
4 programmable motion areas |
| Noise Reduction |
3D DNR/2D DNR |
| Language |
English |
| Functions |
Brightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, Smart Light |
| Lighting Mode |
White Light |
| Interface |
| Video Output |
Switchable TVI/AHD/CVI/CVBS |
| General |
| Power Supply |
12 VDC ± 25% |
| Power Consumption |
Max. 2.9W |
| Protection Level |
IP67 |
| Operating Conditions |
40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) |
| Material |
Metal |
| White Light Range |
20m |
| Communication |
HIKVISION-C |
| Dimension |
161.1 × 70 × 70 mm |
| Weight |
388g |
