| Model |

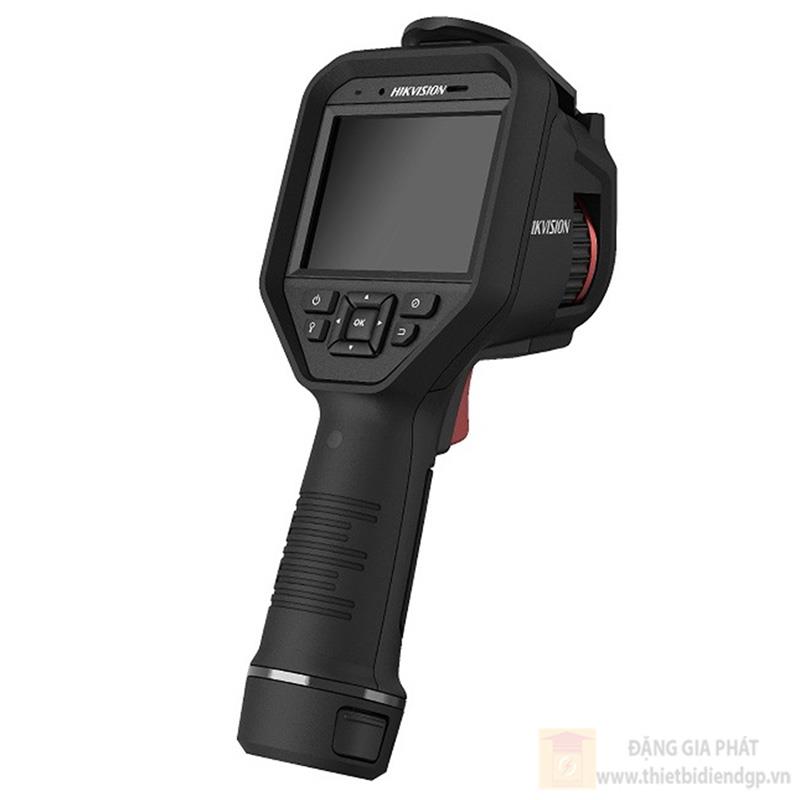

DS-2TP21B-6AVF/W |
| Parameter |
Thermographic Handheld Camera |
| Thermal Module |
| Image sensor |
Uncooled Focal Plane Arrays |
| Resolution |
25Hz: 160 × 120 |
| Pixel Pitch |
17μm |
| Response waveband |
8μm to 14μm |
| NETD |
< 40 mk (@ 25 °C,F#=1.0) |
| Field of View |
25° × 18.7° |
| Focal length |
6.2 mm (Manual focus) |
| IFOV |
2.74 mrad |
| Aperture |
F 1.1 |
| Optical Module |
| Picture Resolution |
Configurable: 2 MP, 5 MP, 8 MP |
| Video Resolution |
640 × 480 |
| Monitor |
640 × 480 resolution 3.5-inch LCD touch display |
| Palettes |
Black hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain |
| Image Display |
| Digital Zoom |
Thermal: 1x, 2x, 4x |
| Thermal/Optical |
Thermal/Optical/Fusion image/Picture in picture |
| Picture in Picture |
Support Thermal View in Optical View |
| Fusion |
Support (Thermal View and Optical View Combined) |
| Record Video |
Support on-board video recording |
| Thermography |
| Rules |
Max. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermography |
| Range |
30°C to 45°C |
| Accuracy |
±0.5°C |
| Battery |
| Battery Type |
Dismountable and rechargeable Li-ion Battery |
| Battery Operating Time |
5 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light off.
4 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light on. |
| Storage |
Built-in memory module (16G) |
| Photo |
Thermal/Optical/Fusion image |
| Video |
Thermal/Optical/Fusion image |
| Wi-Fi |
Support |
| Text Comment |
Support |
| Voice Comment |
Support |
| Language |
English |
| General |
| Power |
5 VDC/2 A |
| Power Consumption |
Max. 4.5 W |
| Hardware Interface |
Type-C Interface |
| Working Temperature |
15°C to 35 °C |
| Protection level |
IP54 |
| Drop Test Height |
2 m (6.56 feet) |
| Dimension |
244 mm × 100 mm × 104 mm |
| Weight |
With Battery: 653 g (1.44 lb)
Without Battery: 511 g (1.13 lb) |
