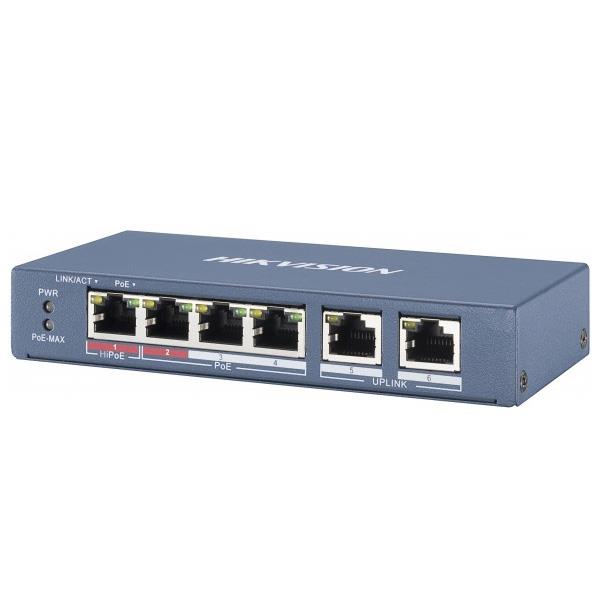

4-port 10/100Mbps Unmanaged PoE Switch HIKVISION

1,150,000 VND

Giá ưu đãi tốt hơn khi báo giá số lượng nhiều

XEM BẢNG GIÁ HIKVISION 2024

Chọn số lượng và Thêm vào giỏ để đặt hàng. Hoặc gửi báo giá nếu số lượng nhiều.

Số lượng

HỖ TRỢ ĐẶT HÀNG/BÁO GIÁ Thứ 2 - Thứ 7 (7h30 - 17h)

Thanh Quy0909617877

Gọi điện Nhắn tin

Lê Loan0769177877

Gọi điện Nhắn tin

Đặng Hồng Thái0938397877

Gọi điện Nhắn tin

Thông số kỹ thuật

- 4 x 10/100M PoE ports, 2 x 10/100M RJ45 ports.

- IEEE 802.3at/af standard for PoE ports (Max. Power output for PoE is 35W).

- IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards.

- Overvoltage protection up to 6 kV for PoE ports.

- Transmission over long distances, up to 300m.

- Switching with performance appropriate for the transmission medium.

- Transfer with intermediate storage.

- Solid, high-strength metal housing.

- Reliable design without a cooler.

Đặc tính kỹ thuật

Network parameters
Number of ports	4 PoE 10 / 100M RJ45 1 uplink port 100M
Port type	RJ45, full duplex, MDI / MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Switching method	Store-and-forward transfer
Work mode	Standard Mode (Default), Long Range Mode
High priority ports	Ports 1 and 2
Long distance ports	Ports 1-4
MAC address table	4K
Switching speed	1.6 Gbps
Packet Forwarding Rate	0.8928 Mbps
Internal cache	768 kbps
Power over PoE
PoE standard	Ports 1-4: IEEE 802.3af, IEEE 802.3at
PoE Power Terminals	Ports 1-4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide simultaneous power.
PoE port	Ports 1-4
Max. port capacity	Ports 1-4: 30W
PoE Power Budget	35 watts
Dial function
Long distance transmission of information	Ports 1-4: up to 300 m.
The main
Coating	Metal, no cooler design
Gross weight	0.52 kg
Net weight	0.265 kg
Dimensions	145 × 68.45 × 25.6 mm
Working temperature	-10 to +40 ° C
Storage temperature	-40 to +85 ° C
Working humidity	5% to 95% (non-condensing)
Storage humidity	5% to 95% (non-condensing)
Nutrition	48VDC, 0.8A
Standby power consumption	less than 5 W
Max. power consumption	38 watts
Power supply	38 watts

Đặc tính kỹ thuật

Model	DS-3E0109P-E/M(B)
Network parameters
Port number	8 x 100M PoE ports, 1 x 100M Ethernet port.
Port type	RJ45 port, Full duplex, MDI/MDI-X adaptive
Standard	IEEE802.3, IEEE802.3u, IEEE802.3x
Processing type	Store-and-forward switching
Ports with high priority	1 to 2 ports
Ports for long-distance transmission	1 to 8 ports
MAC address table	2K
Exchange capacity	1.8 Gbps
Packet forwarding rate	1.339 Mpps
Internal cache	1 Mbits
PoE power supply
Power supply standard	IEEE 802.3af, IEEE 802.3at
Power supply cable core	Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE port	1 to 8
Max. port power	30W
Max. machine power	60W
Mechanical structure
Shell	Metal material, fan-free design
weight	0.35 kg (0.77 lb)
Dimensions (L × H × D)	170 mm × 27.6 mm × 93.1 mm (6.7inch × 1.1inch × 3.7inch)
Environment
Operating temperature	0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
Storage temperature	–40 ˚C to 85 ˚C (–40 ˚F to 185 ˚F)
Relative humidity	5% to 95% (no condensation)
Power supply
Power supply specification	48 VDC, 1.35 A
