Hình ảnh mang tính chất tham khảo, vui lòng xem kỹ mã hàng và mẫu mã từ hãng.

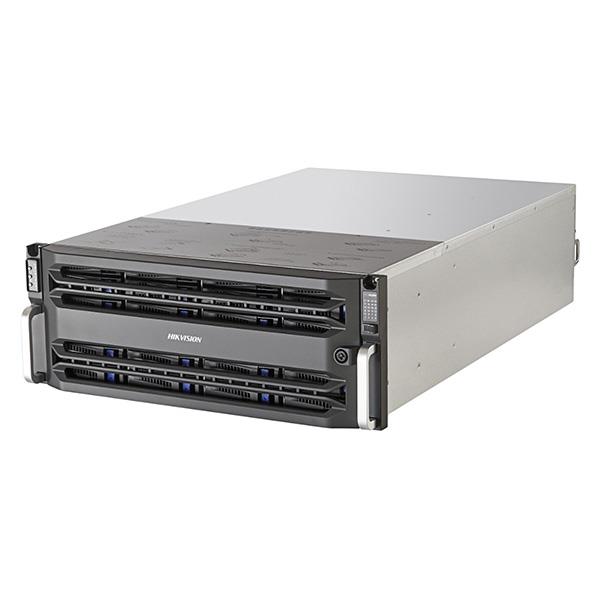

Bộ lưu trữ mạng 24 ổ cứng dùng cho hệ thống camera HIKVISION
Chọn số lượng và Thêm vào giỏ để đặt hàng. Hoặc gửi báo giá nếu số lượng nhiều.
Thông số kỹ thuật
- Tích hợp sẵn 24 ổ cứng 14 TB IoT SMR enterprise.
- 24-slot Cost-efficient Super Capacity Storage.
- IoT fully sealed helium HDD technology.
- Highly cost efficient, safe and reliable.
- Giao thức RTSP, ONVIF, HKSDK.
- Data Network Interface: 4, 1000 Mbps Ethernet interface.
- Management: 1, 1000 Mbps Ethernet interface.
- MiniSAS Interface: 1.
- COM: 1, RS-232.
- HDMI: 2.
- RAID: iRAID.
- Direct Streaming Mode: Video (2 Mbps) + Picture: 400-ch.
Đặc tính kỹ thuật
| Model | DS-AT1000S/342 |
| Network | |
| Protocol | RTSP, ONVIF, HKSDK |
| External Interface | |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| VGA | Supported (VGA and RS-232 interface cannot be used at the same time) |
| Data Network Interface | 4, 1000 Mbps Ethernet interface |
| Management | 1, 1000 Mbps Ethernet interface |
| MiniSAS Interface | 1 |
| COM | 1, RS-232 |
| Storage | |
| HDD Slot | 24 |
| Interface/Capacity | SATA, Up to 14TB |
| RAID | iRAID |
| Performance | |
| Direct Streaming Mode | Video (2 Mbps) + Picture400-ch |
| Hardware | |
| Processor | 64-bit multi-core processor |
| Cache | |
| 16 GB, extendable to 32 GB | |
| Storage Management | |
| Disk Management | Disk detection pre-alarm and repair |
| Logical Volume | Recording volume management |
| Recording Management | |
| Recording Mode | Continuous recording, manual recording, and alarm recording |
| Video Protection | Video lock, video loss alarm |
| Searching Mode | Log in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information |
| Downloading Mode | Log in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information |
| Device Maintenance | |
| Management Mode | GUI based on web, serial port CLI, platform |
| Alarm Mode | Audio, indicator, GUI |
| General | |
| Power Supply | 100 to 127 VAC or 200 to 240 VAC/47 to 63Hz, redundant power supply |
| Consumption (With HDDs) | ≤ 369.8 W |
| Dimensions | 445 ×175 × 746 mm |
| Weight | ≤ 40 Kg |
