Hình ảnh mang tính chất tham khảo, vui lòng xem kỹ mã hàng và mẫu mã từ hãng.

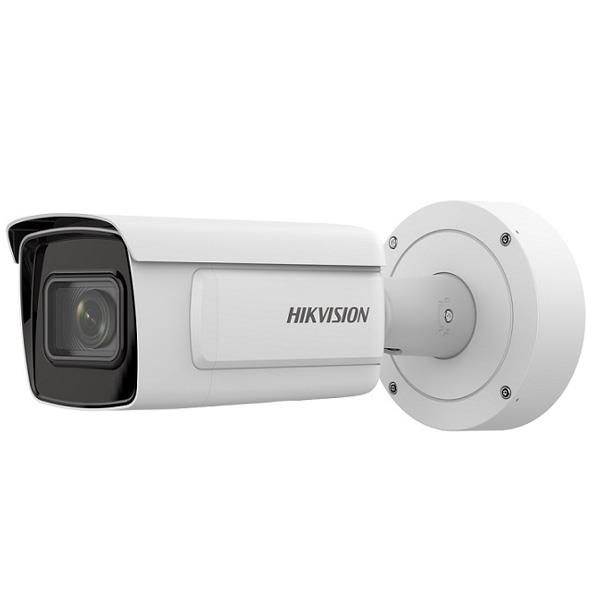

Camera IP nhận diện biển số xe HIKVISION (2.8~12 mm)

Giá: liên hệ

Giá ưu đãi tốt hơn khi báo giá số lượng nhiều

Mã sản phẩm iDS-2CD7A46G0/P-IZHSY
Thương hiệu HIKVISION
Danh mục Camera Smart IP Dark Fighter và đếm biển số xe (HIKVISION)
Phân loại Camera Smart IP (chuyên dụng)
Bảo hành 12 tháng (Theo hãng)

XEM BẢNG GIÁ HIKVISION 2024

Chọn số lượng và Thêm vào giỏ để đặt hàng. Hoặc gửi báo giá nếu số lượng nhiều.

Số lượng

Hướng dẫn đặt hàng | Bảo hành & Đổi trả

Chỉ đường trên Google Maps

HỖ TRỢ ĐẶT HÀNG/BÁO GIÁ Thứ 2 - Thứ 7 (7h30 - 17h)

Thanh Quy0909617877

Gọi điện Nhắn tin

Lê Loan0769177877

Gọi điện Nhắn tin

Đặng Hồng Thái0938397877

Gọi điện Nhắn tin

Thông số kỹ thuật

- Camera nhận dạng biển số DeepinView.

- Nhận dạng biển số ô tô/ xe máy.

- Độ phân giải: 1920x1080 @ 60fps.

- Ống kính: 8~32mm.

- Độ nhạy sáng: 0.002 Lux @ F1.2, AGC ON.

- Chuẩn nén: H.265+, H.265, H.264+, H.264.

- Chống ngược sáng thực WDR 140dB.

- Hỗ trợ 5 luồng dữ liệu.

- Hỗ trợ khe cắm thẻ nhớ tối đa 256GB.

- Hỗ trợ 1 cổng báo động vào/ra.

- Tiêu chuẩn chống bụi nước: IP67.

- Tiêu chuẩn chống va đập: IK10.

- Tầm quan sát hồng ngoại: 100 mét.

- Phù hợp dùng cho cổng, lối ra vào.

Đặc tính kỹ thuật

Camera
Image Sensor	1/1.8 inch Progressive Scan CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Slow shutter	Yes
Shutter time	1 s to 1/100,000 s
Lens	8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
Adjustment Range	Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night	IR Cut Filter
Wide Dynamic Range	140dB
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Max. Image Resolution	1920 x 1080
Image Enhancement	BLC, HLC, 3D DNR, Defog, EIS
BLC	Support
HLC	Support
Smart Defog	Support
EIS	Support
3D DNR	Support
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch	Day/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Intelligent
Behavior analysis	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Communication Interface:	1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Alarm	2 inputs, 2 outputs (up to 24VDC 1A or 110VAC 500mA)
Video Output	1Vp-p Composite Output (75 Ω, BNC)
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection	Cross a pre-defined virtual line
Intrusion Detection	Enter and loiter in a pre-defined virtual region
Region Entrance	Enter a pre-defined virtual region from the outside place
Region Exiting	Exit from a pre-defined virtual region
Unattended Baggage	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal	Objects removed from the pre-defined region, such as the exhibits on display
Exception Detections	Scene change detection, defocus detection
General
IR Range	up to 100m
Operation Condition	-30°C to 60°C
Power Consumption	12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
Impact Protection	IK10
Weather Proof	IP67
Dimensions	Φ140 × 351 mm
Weight	approx. 2.5 kg

Camera
Image Sensor:		1/2.5" progressive scan CMOS
Effective Pixels:		2560(H)×1440(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
Smart defog:		Support
WDR:		120dB
Shutter Time:		1/1 to 1/30,000s
Day& Night:		ICR
Digital Zoom:		16×
Auto Focus:		Auto / Semi-automatic / Manual
Lens
Focal Length:		4.8 mm to 120 mm, 25× optical
Zoom Speed:		Approx. 3.6 s (optical lens, wide-tele)
Angle of View:		Horizontal field of view: 59.5° to 2.6° (Wide-Tele) Vertical field of view: 35.7° to 1.5° (Wide-Tele) Diagonal field of view: 66.6 to 3.0° (Wide-Tele)
Minimum Working Distance:		10 to 1500mm (wide-tele)
Aperture Range:		F1.6 to F3.5
Pan & Tilt
Pan Range:		360°endless
Pan Speed:		Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s
Tilt Range:		-15°-90° (Auto Flip )
Tilt Speed:		Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets for each patrol
Pattern:		4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:		Support
Park Action:		Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display:		ON/OFF
Infrared
IR irradiation distance:		100m
IR irradiation angle:		Adjustable by zoom
Input & Output
Audio Input:		1-ch audio input
Audio Output:		1-ch audio output
Network
Ethernet:		10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:		2560 × 1440
Main Stream:		50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:		50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:		50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Video Compression:		Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
ROI encoding:		Support 4 areas with adjustable levels
Audio Compression:		G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:		Up to 20 users
Three-Stream:		Support
Mini SD Card:		Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures:		User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
Client GUI
Client:		iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
General
Power Supply:		12VDC, PoE+
Power Consumption:		Max.: 18W (IR light 7W Max.)
Working Temperature/Humidity:		Outdoor: -30°C to 65°C (-22°F to 149°F) Humidity:≤ 90%
Protection Level:		IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Material:		ADC 12, PC+10% GF
Dimensions:		Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
Weight (approx.):		Approx. 2.45kg (5.40lb)
