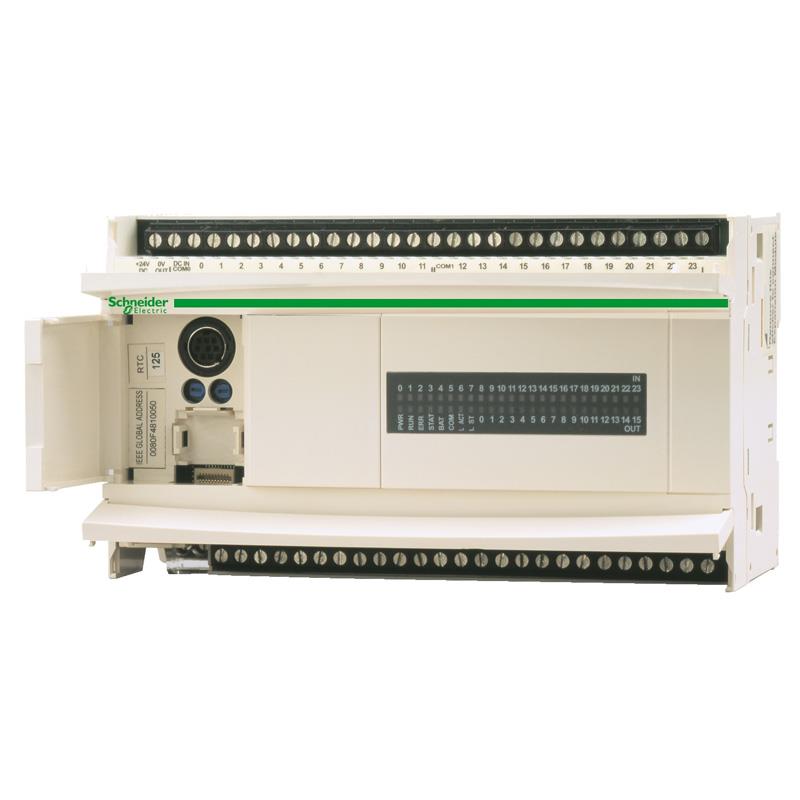

Bộ điều khiển lập trình TWDLCAA40DRF 40 I/O 24 IN DC

Twido

Compact base controller

40

24

24 V

DC

14 for relay
2 for transistor

100...240 V AC

7

Memory cartridge

Internal RAM external battery TSXPLP01, 3 years autonomy

Power supply
Non isolated serial link mini DIN, Modbus/character mode master/slave RTU/ASCII (RS485) half duplex, 38.4 kbit/s
Serial link interface adaptor (RS232C/RS485)

Event processing
PID

Sink or source

20.4...26.4 V

11 mA for I0.0 to I0.1
11 mA for I0.6 to I0.7
7 mA for I0.2 to I0.5
7 mA for I0.8 to I0.23

2100 Ohm for I0.0 to I0.1
2100 Ohm for I0.6 to I0.7
3400 Ohm for I0.2 to I0.5
3400 Ohm for I0.8 to I0.23

150 µs + programmed filter time for I0.6 to I0.23 at state 0
35 µs + programmed filter time for I0.0 to I0.5 at state 1
40 µs + programmed filter time for I0.0 to I0.5 at state 0
40 µs + programmed filter time for I0.6 to I0.23 at state 1

1500 Vrms for 1 minute

None

0.1 mA

30000 µOhm

2 A at 240 V AC inductive load, operating rate <30 cyc/mn for relay output
2 A at 240 V AC resistive load, operating rate <30 cyc/mn for relay output
2 A at 30 V DC inductive load, operating rate <30 cyc/mn for relay output
2 A at 30 V DC resistive load, operating rate <30 cyc/mn for relay output

20000000 cycles for relay output

100000 cycles for relay output

128 mA at 24 V DC at state 1
128 mA at 24 V DC state 1 + input ON
140 mA at 5 V DC state 1 + input ON
5 mA at 24 V DC at state 0
70 mA at 5 V DC at state 0
90 mA at 5 V DC at state 1

Non-removable screw terminal block

152 removable screw terminal block with I/O expansion module
208 spring terminal block with I/O expansion module
264 HE-10 connector with I/O expansion module

50/60 Hz

85…264 V

47…63 Hz

0.4 A for 24 V DC sensors

790 mA

35 A

Power protection by internal fuse

65 VA at 100 V
77 VA at 264 V

> 10 MOhm at 500 V, between I/O and earth terminals
> 10 MOhm at 500 V, between supply and earth terminals

3000 instructions

1 ms

0.5 ms

Internal RAM, 128 counters, no floating, no trigonometrical
Internal RAM, 128 timers, no floating, no trigonometrical
Internal RAM, 256 internal bits, no floating, no trigonometrical
Internal RAM, 3000 internal words, no floating, no trigonometrical
Internal RAM, double words, no floating, no trigonometrical
Internal RAM, floating, trigonometrical

1

With clock, clock drift <= 30 s/month, operating time: 30 days

PWM/PLS 2 channel(s) at 7 kHz

2 counting input(s) at 20000 Hz 32 bits
4 counting input(s) at 5000 Hz 16 bits

1 point adjustable from 0 to 511 points
1 point adjustable from 0...1023

1 LED (green)PWR:
1 LED (green)RUN:
1 LED per channel (green)I/O status:
1 LED (red)module error (ERR):
1 LEDuser pilot light (STAT):

70 mm

95 mm

90 mm

0.525 kg
