| Model |

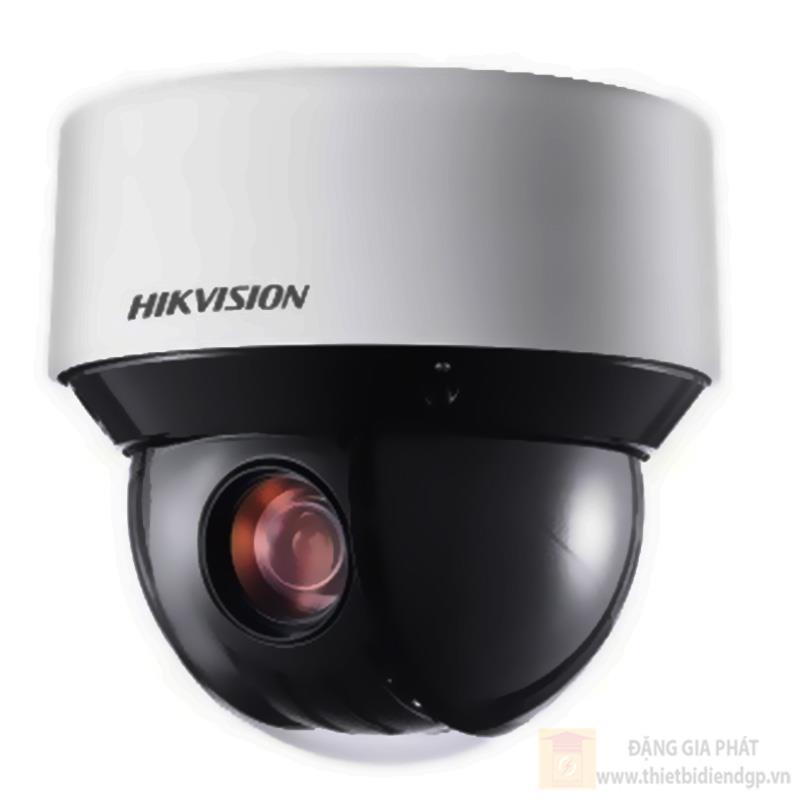

DS-2DE4A225IW-DE |
| Camera |
| Image Sensor |
1/2.8 inch progressive scan CMOS |
| Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
| White Balance |
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC |
Auto/Manual |
| Shutter Time |
1/1 s to 1/30,000 s |
| Day & Night |
IR Cut Filter |
| Digital Zoom |
16× |
| Privacy Mask |
24 programmable privacy masks |
| Focus Mode |
Auto/Semi-automatic/Manual |
| WDR |
120 dB WDR |
| Lens |
| Focal Length |
4.8 mm to 120 mm, 25× optical |
| Zoom Speed |
Approx. 3.2 s (optical lens, wide-tele) |
| FOV |
Horizontal field of view: 57.6° to 2.5° (wide-tele) Vertical field of view: 34.4° to 1.4° (wide-tele) Diagonal field of view: 64.5° to 2.9° (wide-tele) |
| Working Distance |
10 mm to 1500 mm (wide-tele) |
| Aperture Range |
F1.6 to F3.5 |
| IR |
| IR Distance |
50 m |
| Smart IR |
Support |
| PTZ |
| Movement Range (Pan) |
360° endless |
| Pan Speed |
Configurable, from 0.1°/s to 300°/s Preset Speed: 350°/s |
| Movement Range (Tilt) |
From -5° to 90° (auto-flip) |
| Tilt Speed |
Configurable, from 0.1°/s to 160°/s Preset Speed: 200°/s |
| Proportional Zoom |
Support |
| Presets |
300 |
| Patrol Scan |
8 patrols, up to 32 presets for each patrol |
| Pattern Scan |
4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory |
Support |
| Park Action |
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Position Display |
Support |
| Preset Freezing |
Support |
| Scheduled Task |
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Compression Standard |
| Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.264+ |
Support |
| H.265 Type |
Main Profile |
| H.265+ |
Support |
| Video Bitrate |
32 Kbps to 16384 Kbps |
| Audio Compression |
G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM |
| Audio Bitrate |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2) |
| SVC |
Support |
| Smart Feature |
| Basic Event Detection |
Motion Detection, Video Tampering Detection, Alarm Input, Alarm Output, Exception |
| Smart Detection |
Audio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection |
| Smart Tracking |
Manual Tracking, Auto Tracking, Event Tracking |
| ROI encoding |
Main stream, sub-stream, and third stream respectively support four fixed areas. |
| Smart Record |
ANR (Automatic Network Replenishment), Dual-VCA |
| Image |
| Max. Resolution |
1920 × 1080 |
| Main Stream |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream |
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Image Enhancement |
HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Network |
| Network Storage |
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| Alarm Linkage |
Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API |
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform |
| Simultaneous Live View |
Up to 20 channels |
| User/Host |
Up to 32 users. 3 levels: Administrator, Operator and User |
| Security Measures |
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Client |
iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser |
IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Interface |
| Audio Interface |
1-ch audio input and 1-ch audio output |
| Alarm Interface |
2-ch alarm input and 2-ch alarm input |
| Network Interface |
1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4) |
| General |
| Power |
12 VDC & PoE+ (802.3 at, class4), Max.:18 W (IR Max.5 W) |
| Working Temperature |
-30°C to 65°C (-22°F to 149°F) |
| Working Humidity |
≤ 90% |
| Protection Level |
IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material |
ADC12, PC, PC+ABS, SUS304, POM |
| Dimensions |
Φ 169 × 161 mm |
| Weight |
Approx. 2.45 kg |
